Shelco Multi-Cartridge Stainless Steel Filter Housings.

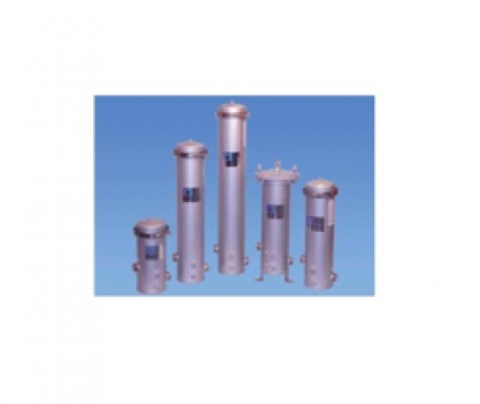

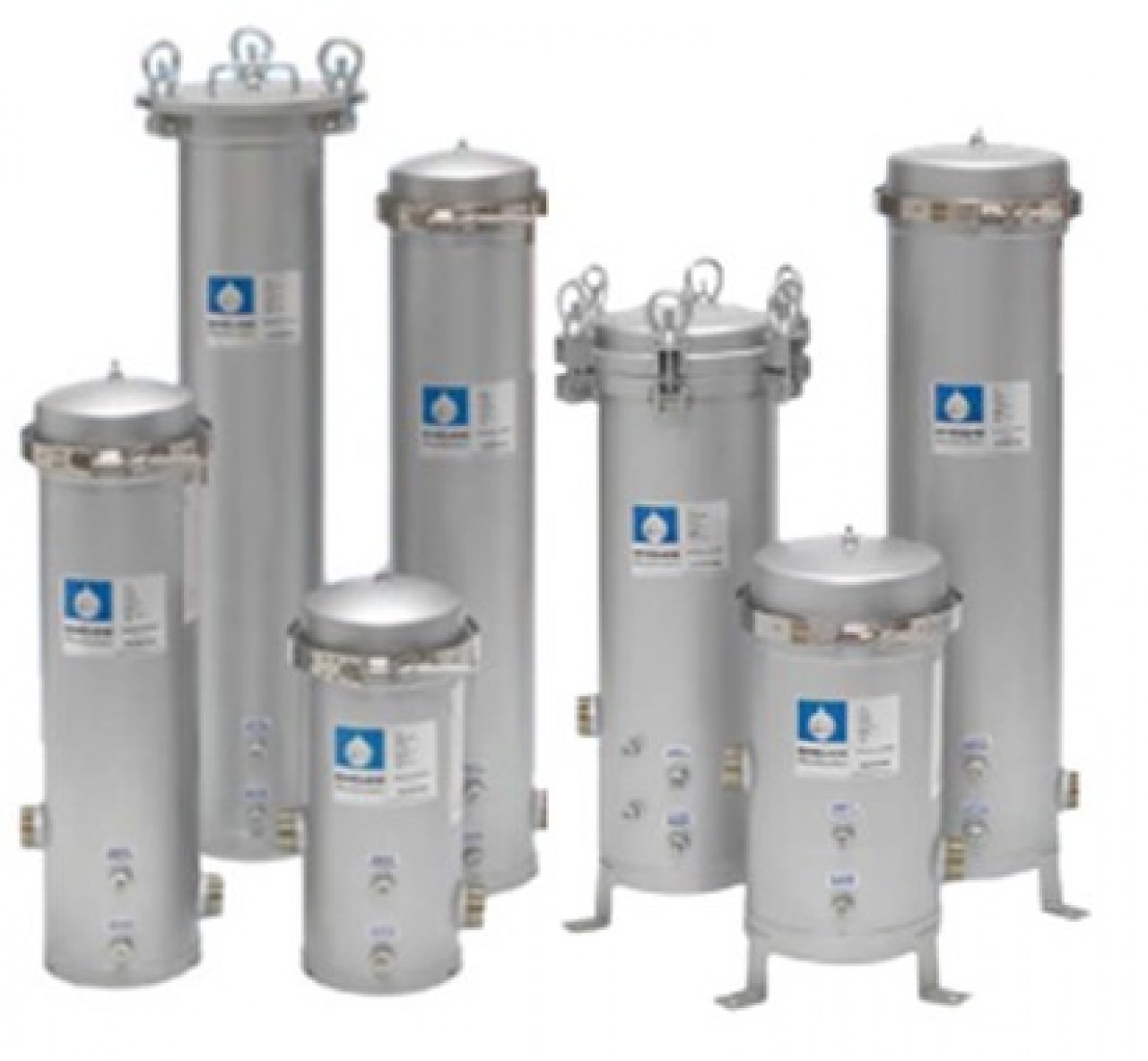

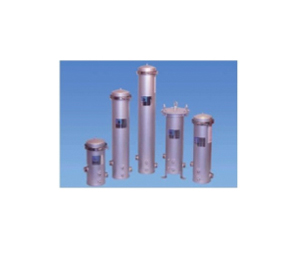

Shelco Stainless Steel Multi Cartridge Housings
Shelco Stainless Steel Multi Cartridge Housings.
- Designed for industrial and commercial filtration needs
- Heavy duty stainless steel construction for durability
- 304L standardand 316L stainless steel available
- Band clamp and swing-bolt closures for quick cartridge change outs
- Working pressure rated up to 150 PSI @ 149 degrees Celsius
- Knife edge seal at both cartridge ends to eliminate by-pass
- Standard housings accept double-open-end cartridges
- Available with 222 or 226 cartridge adapters
- Complete selection of pipe fittings: flanged, sanitary, BSP, grooved and others
- See ordering guide for a complete selection of options to fit your application
Description
| 4 Cartridge Round Multi-Cartridge Filter Housings. | Part No |
|---|---|
| 10" cartridges, Flows up to 106 LPM. 2" BSP inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 4FOS1 |
| 20" cartridges, Flows up to 212 LPM. 2" BSP inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 4FOS2 |
| 30" cartridges, Flows up to 318 LPM. 2" BSP inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 4FOS3 |
| 40" cartridges, Flows up to 424 LPM. 2" BSP inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 4FOS4 |
| 5 Cartridge Round Multi-Cartridge Filter Housings. | Part No |
|---|---|
| 10" cartridges, Flows up to 132 LPM. 2" BSP inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 5FOS1 |
| 20" cartridges, Flows up to 265 LPM. 2" BSP inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 5FOS2 |
| 30" cartridges, Flows up to 397 LPM. 2" BSP inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 5FOS3 |
| 40" cartridges, Flows up to 530 LPM. 2" BSP inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 5FOS4 |
| 7 Cartridge Round Multi-Cartridge Filter Housings. ( Accepts DOE & 222 Cartridge Configurations ) | Part No |
|---|---|
| 10" cartridges, Flows up to 185 LPM. 2" BSP inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 7FOS1 |
| 20" cartridges, Flows up to 370 LPM. 2" BSP inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 7FOS2 |
| 30" cartridges, Flows up to 556 LPM. 2" BSP inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 7FOS3 |
| 40" cartridges, Flows up to 741 LPM. 2" BSP inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 7FOS4 |
| 12 Cartridge Round Multi-Cartridge Filter Housings. | Part No |
|---|---|
| 20" cartridges, Flows up to 635 LPM. 3" flanged inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 12FOS2 |
| 30" cartridges, Flows up to 954 LPM. 3" flanged inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 12FOS3 |
| 40" cartridges, Flows up to 1,272 LPM. 3" flanged inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 12FOS4 |
| 22 Cartridge Round Multi-Cartridge Filter Housings. | Part No |
| 30" cartridges, Flows up to 1,748 LPM. 4" flanged inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 12FOS3 |
| 40" cartridges, Flows up to 2,331 LPM. 4" flanged inlet / outlet ports. Drains 1/2" BSP, Vent 1/4" NPT | 12FOS4 |
| 36 Cartridge Round Multi-Cartridge Filter Housings. | Part No |
|---|---|
| 30" cartridges, Flows up to 2,044 LPM. 6" flanged inlet / outlet ports. Drains 3/4" BSP, Vent 1/2" NPT | 36FOS3 |
| 40" cartridges, Flows up to 2,725 LPM. 6" flanged inlet / outlet ports. Drains 3/4" BSP, Vent 1/2" NPT | 36FOS4 |
| 52 Cartridge Round Multi-Cartridge Filter Housings. | Part No |
|---|---|
| 30" cartridges, Flows up to 2,952 LPM. 6" flanged inlet / outlet ports. Drains 3/4" BSP, Vent 1/2" NPT | 52FOS3 |
| 40" cartridges, Flows up to 3,936 LPM. 6" flanged inlet / outlet ports. Drains 3/4" BSP, Vent 1/2" NPT | 52FOS4 |
