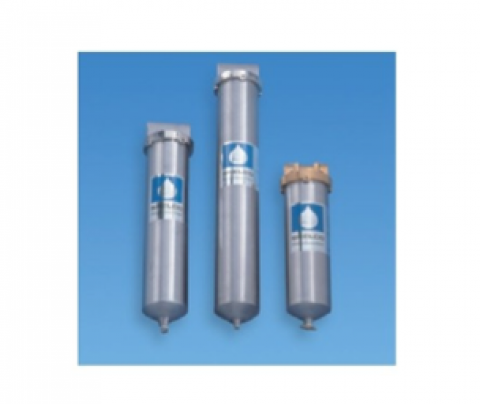

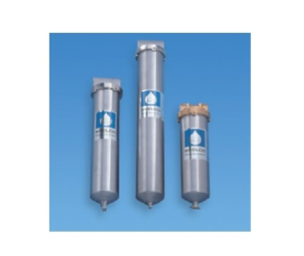

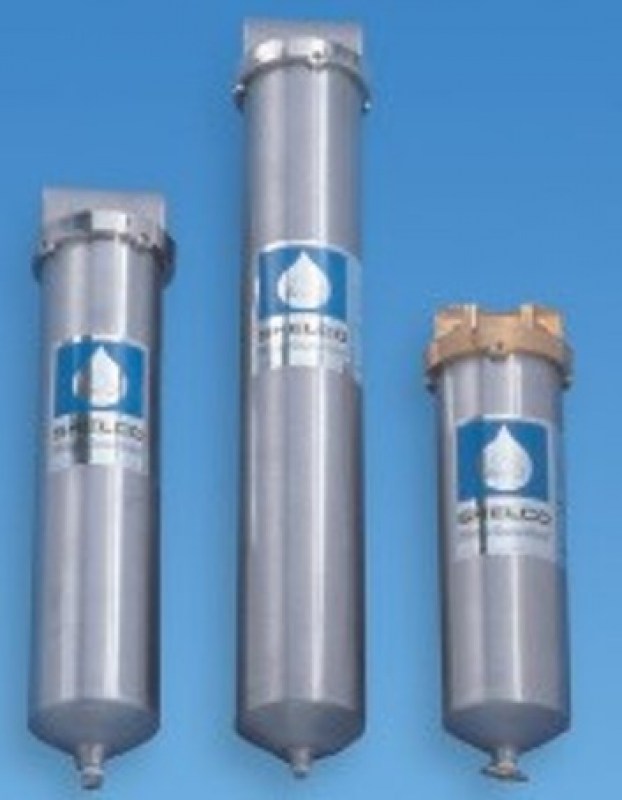

Shelco Single Stainless Steel Filter Housings
Shelco Single Stainless Steel Cartridge Housings for DOE & SOE cartridge configurations.
Shelco single stainless steel housings are designed for commercial and industrial applications.
Heavy duty construction for maximum durability.
Available in 1/2", 3/4" and 1" BSP parallel ports.
Ring nut closures for quick cartridge change outs.
Supplied with mounting bracket kit and housing wrench.
Numerous gasket options available for compatability with most fluids.
| RHB Series: Forged Brass Head With 304L Sump |
Box Qty
| Part No. |
|---|---|---|
| 10" DOE with 3/4" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
RHB-786-BSP |
| 10" DOE with 1" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
RHB-788-BSP |
| 20" DOE with 3/4" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
RHB-806-BSP |
| 20" DOE with 1" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
RHB-808-BSP |
| 30" DOE with 3/4" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
RHB-906-BSP |
| 30" DOE with 1" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
RHB-908-BSP |
* To add 2 x 1/4" pressure gauge ports add -GP4 at the end of the part number.
| RHS Series: 316L S/Steel Head And Sump |
Box Qty
| Part No. |
|---|---|---|
| 10" DOE with 3/4" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
RHS-786-BSP |
| 10" DOE with 1" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
RHS-788-BSP |
| 20" DOE with 3/4" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
RHS-806-BSP |
| 20" DOE with 1" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
RHS-808-BSP |
| 30" DOE with 3/4" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
RHS-906-BSP |
| 30" DOE with 1" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
RHS-908-BSP |
* To add 2 x 1/4" pressure gauge ports add -GP4 at the end of the part number.
| CFS Series: 316L S/Steel 222 Style Filter Housings |
Box Qty
| Part No. |
|---|---|---|
| Single Length 222 Cartridge housing with 3/4" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
CSF-786-222-BSP |
| Single Length 222 Cartridge housing with 1" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
CSF-788-222-BSP |
| Double Length 222 Cartridge housing with 3/4" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
CSF-806-222-BSP |
| Double Length 222 Cartridge housing with 1" BSP parallel ports, Buna N gaske t& mounting bracket |
1
|
CSF-808-222-BSP |
| Triple Length 222 Cartridge housing with 3/4" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
CSF-906-222-BSP |
| Triple Length 222 Cartridge housing with 1" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
CSF-908-222-BSP |
* To add 2 x 1/4" pressure gauge ports add -GP4 at the end of the part number.
| CFS Series 316 S/Steel 226 Style Filter housings |
Box Qty
| Part No. |
|---|---|---|
| Single Length 226 Cartridge housing with 3/4" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
CSF-786-226-BSP |
| Single Length 226 Cartridge housing with 1" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
CSF-788-226-BSP |
| Double Length 226 Cartridge housing with 3/4" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
CSF-806-226-BSP |
| Double Length 226 Cartridge housing with 1" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
CSF-808-226-BSP |
| Triple Length 228 Cartridge housing with 3/4" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
CSF-906-226-BSP |
| Triple Length 226 Cartridge housing with 1" BSP parallel ports, Buna N gasket & mounting bracket |
1
|
CSF-908-226-BSP |
* To add 2 x 1/4" pressure gauge ports add -GP4 at the end of the part number.
| Stainless Steel Sump Extension Springs |
Box Qty
| Part No. |
|---|---|---|
| Stainless steel sump extension springs for use with 222 flat end configuration cartridges |
1
|
3805 |
