X100 / #5 Size Bag Filter Housings & Bags
X100 filter bags / #5 size filter bags
Filter bags to suit the FSI X100 bag housings or #5 size bag housings.
Description
#5 Size Polypropylene Bag Filter Housing.
Strong robust construction.
Easy openening screw thread closure.
Able to be bolted directly onto skid or slab.
Comes standard with 2" flanged ports and 2" flange to 2" BSP threaded connectors.
Maximum working pressure: 150 PSI.
Maximum working temperature: 43°C.
|
Description | Box Qty | Part No. |
|---|---|---|
| #5 size polypropylene bag filter housing with 2" ports | 1 | HSNG-BAG#5-2PP |
Downloadable brochure available.
Surface area of an X100 / #5 bag element = 2 square feet ( 0.186 square meters )
|

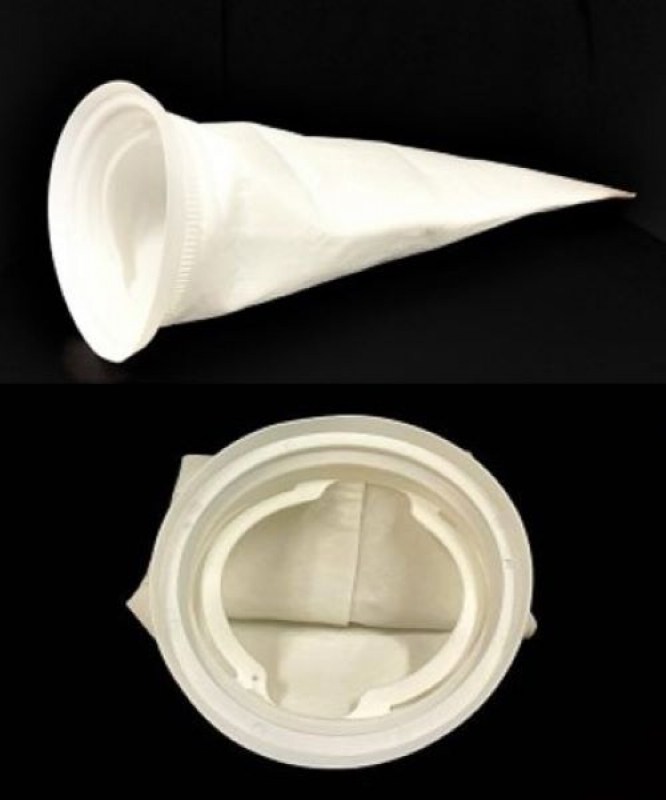

Polypropylene Felt Bag Filter Elements With Poly Flanges To Suit X100 / #5 Housings. | Box Qty | Part No. |
|---|---|---|
| Polypropylene Felt 1 micron nominal | 50 | BAG-X100-P1 |
| Polypropylene Felt 5 micron nominal | 50 | BAG-X100-P5 |
| Polypropylene Felt 10 micron nominal | 50 | BAG-X100-P10 |
| Polypropylene Felt 25 micron nominal | 50 | BAG-X100-P25 |
| Polypropylene Felt 50 micron nominal | 50 | BAG-X100-P50 |
| Polypropylene Felt 100 micron nominal | 50 | BAG-X100-P100 |
|
Nylon Monofilament Bag Filter Elements With Poly Flanges To Suit X100 / #5 Housings. | Box Qty | Part No. |
|---|---|---|
| Nylon monofilament 50 micron nominal | 50 | BAG-X100-N50 |
| Nylon monofilament 75 micron nominal | 50 | BAG-X100-N75 |
| Nylon monofilament 100 micron nominal | 50 | BAG-X100-N100 |
| Nylon monofilament 150 micron nominal | 50 | BAG-X100-N150 |
| Nylon monofilament 200 micron nominal | 50 | BAG-X100-N200 |
| Nylon monofilament 300 micron nominal | 50 | BAG-X100-N300 |
| Nylon monofilament 400 micron nominal | 50 | BAG-X100-N400 |
| Nylon monofilament 500 micron nominal | 50 | BAG-X100-N500 |
| Nylon monofilament 600 micron nominal | 50 | BAG-X100-N600 |
| Nylon monofilament 700 micron nominal | 50 | BAG-X100-N700 |
| Nylon monofilament 800 micron nominal | 50 | BAG-X100-N800 |
| Nylon monofilament 900 micron nominal | 50 | BAG-X100-N900 |
| Nylon monofilament 1,250 micron nominal | 50 | BAG-X100-N1250 |
