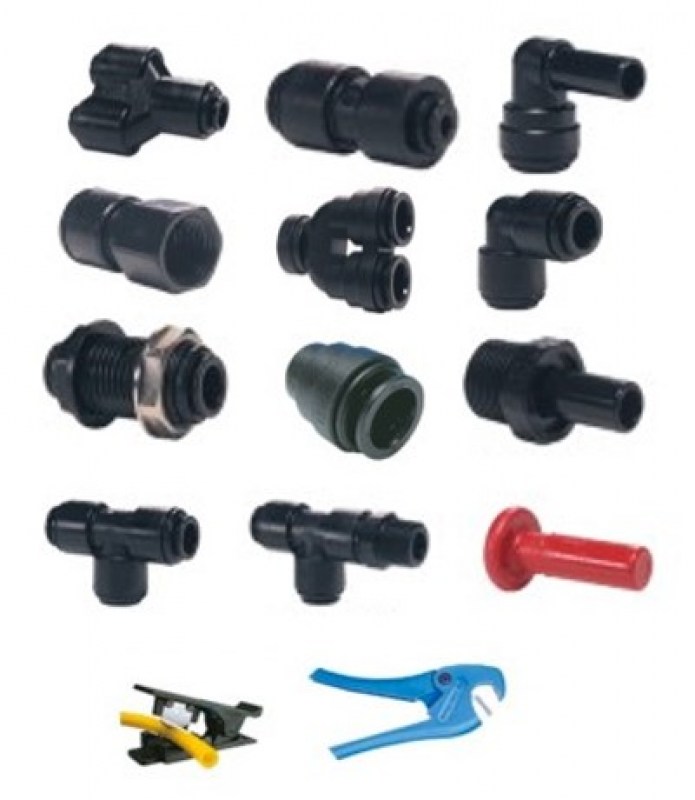

John Guest Acetal Metric Fittings

Description

Straight Adaptor Description (Tube x Thread)	Bag Qty	Part No.	BSP Part No.
4MM X 1/8"	10	PM010401E	PM010411E
4MM X 1/4"	10	PM010402E	PM010412E
5MM X 1/8"	10	PM010501E	PM010511E
5MM X 1/4"	10	PM010502E	PM010512E
6MM X 1/8"	10	PM010601E	PM010611E
6MM X 1/4"	10	PM010602E	PM010612E
8MM X 1/8"	10	PM010801E	PM010811E
8MM X 1/4"	10	PM010802E	PM010812E
8MM X 3/8"	10	PM010803E	PM010813E
10MM X 1/4"	10	PM011002E	PM011012E
10MM X 3/8"	10	PM011003E	PM011013E
10MM X 1/2"	10	PM011004E	PM011014E
12MM X 3/8"	10	PM011203E	PM011213E
12MM X 1/2"	10	PM011204E	PM011214E
15MM X 1/2"	10	-	PM011514E
15MM X 3/4" * NO THREAD SEAL	10	-	PM011516E
18MM X 1/2"	10	-	PM011814E
22MM X 3/4"	10	-	PM012216E



Equal Straight Connector Description (Tube x Tube)	Bag Qty	Part No.
4MM	10	PM0404E
5MM	10	PM0405E
6MM	10	PM0406E
8MM	10	PM0408E
10MM	10	PM0410E
12MM	10	PM0412E
15MM	10	PM0415E
18MM	10	PM0418E
22MM	10	PM0422E



Reducing Straight Connector Description (Tube x Tube)	Box Qty	Part No.
6MM - 4MM	10	PM200604E
8MM - 4MM	10	PM200804E
8MM - 6MM	10	PM200806E
10MM - 4MM	10	PM201004E
10mm - 6MM	10	PM201006E
10MM - 8MM	10	PM201008E
12MM - 8MM	10	PM201208E
12MM - 10MM	10	PM201210E



Equal Elbow Description (Tube x Tube)	Bag Qty	Part No.
4MM	10	PM0304E
5MM	10	PM0305E
6MM	10	PM0306E
8MM	10	PM0308E
10MM	10	PM0310E
12MM	10	PM0312E
15MM	10	PM0315E
18MM	10	PM0318E
22MM	10	PM0322E



Reducing Elbow Description (Tube x Tube)	Box Qty	Part No.
6MM - 4MM	10	PM210604E
8MM - 4MM	10	PM210804E
8MM - 6MM	10	PM210806E
10MM - 4MM	10	PM211004E
10MM - 6MM	10	PM211006E
10MM - 8MM	10	PM211008E
12MM - 8MM	10	PM211208E
12MM - 10MM	10	PM211210E



Stem Elbow Description (Stem x Tube)	Bag Qty	Part No.
4MM - 4MM	10	PM220404E
5MM - 5MM	10	PM220505E
6MM - 6MM	10	PM220606E
8MM - 8MM	10	PM220808E
10MM - 10MM	10	PM221010E
12MM - 12MM	10	PM221212E
15MM - 15MM	10	PM221515E
18MM - 18MM	10	PM221818E
22MM - 22MM	10	PM222222E



Rigid Elbow Description (Tube x Thread)	Bag Qty	Part No.
6MM X 1/8"	10	PM480621E
6MM X 1/4"	10	PM480622E
6MM X 3/8"	10	PM480623E



Equal Tee Description (Tube x Tube x Tube)	Box Qty	Part No.
4MM	10	PM0204E
5MM	10	PM0205E
6MM	10	PM0206E
8MM	10	PM0208E
10MM	10	PM0210E
12MM	10	PM0212E
15MM	10	PM0215E
18MM	10	PM0218E
22MM	10	PM0222E



Equal Tee Description (Tube x Tube x Branch)	Bag Qty	Part No.
4MM x 4MM x 6MM	10	PM3006AE
18MM x 18MM x 15MM	10	PM3018AE
22MM x 22MM x 15MM	10	PM3022AE

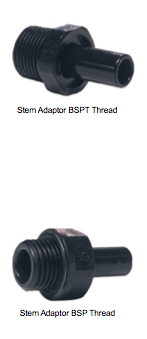

Stem Adaptor Description (Stem x Thread)	Box Qty	Part No.	BSPT Part #
4MM X 1/8"	10	PM050401E	PM050411E
4MM X 1/4"	10	PM050402E	PM050412E
5MM X 1/8"	10	PM050501E	PM050511E
5MM X 1/4"	10	PM050502E	PM050512E
6MM X 1/8"	10	PM050601E	PM050611E
6MM X 1/4"	10	PM050602E	PM050612E
8MM X 1/8"	10	PM050801E	PM050811E
8MM X 1/4"	10	PM050802E	PM050812E
8MM X 3/8"	10	PM050803E	PM050813E
10MM X 1/4"	10	PM051002E	PM051012E
10MM X 3/8"	10	PM051003E	PM051013E
10MM X 1/2"	10	PM051004E	PM051014E
12MM X 3/8"	10	PM051203E	PM051213E
12MM X 1/2"	10	PM051204E	PM051214E
15MM X 3/8"	10	-	PM05153E
15MM X 1/2"	10	-	PM05154E
18MM X 1/2"	10	-	PM051814E
22MM X 1/2"	10	-	PM052214E
22MM X 3/4"	10	-	PM052216E



Bulkhead Connector Description (Tube x Tube)	Box Qty	Part No.
4MM	10	PM1204E
5MM	10	PM1205E
6MM	10	PM1206E
8MM	10	PM1208E
10MM	10	PM1210E
12MM	10	PM1212E



Stem Reducer Description (Stem x Tube)	Bag Qty	Part No.
5MM X 4MM	10	PM060504E
6MM X 4MM	10	PM060604E
6MM X 5MM	10	PM060605E
8MM X 4MM	10	PM060804E
8MM X 5MM	10	PM060805E
8MM X 6MM	10	PM060806E
10MM X 6MM	10	PM061006E
10MM X 8MM	10	PM061008E
12MM X 8MM	10	PM061208E
12MM X 10MM	10	PM061210E
15MM X 10MM	10	PM061510E
15MM X 12MM	10	PM061512E
18MM X 15MM	10	PM061815E
22MM X 15MM	10	PM062215E
22MM X 18MM	10	PM062218E



Female Adaptor Description (Tube x Thread)	Bag Qty	Part No.
4MM X 1/8"BSP	10	PM450411E
6MM X 1/8" BSP	10	PM450611E
6MM X 1/4" BSP	10	PM450612E
6MM X 3/4" BSP	10	CM320616E
8MM X 1/4" BSP	10	PM450812E
8MM X 3/8" BSP	10	PM450813E
8MM X 3/8" BSP	10	CM320816FE
6MM X 3/4" BSP	10	CM320816E
10MMX7/16-24 UNS	10	CM3210U7E
10MM X 1/2" BSP	10	CM321014E
10MM X 5/8" BSP	10	PM451015FE
12MM X 3/8" BSP	10	CM451213FS
12MM X 1/2" BSP	10	CM451214FS
12MM X 5/8" BSP	10	PM451215FS
12MM X 3/4" BSP	10	CM321216E
15MM X 3/8" BSP	10	CM451513FS



Swivel Elbow Description (Tube x Thread)	Bag Qty	BSPT Part #	BSP Part#
4MM X 1/8"	10	PM090401E	PM090411E
4MM X 1/4"	10	PM090402E	PM090412E
5MM X 1/8"	10	PM090501E	PM090511E
5MM X 1/4"	10	PM090502E	PM090512E
6MM X 1/8"	10	PM090601E	PM090611E
6MM X 1/4"	10	PM090602E	PM090612E
8MM X 1/8"	10	PM090801E	PM090811E
8MM X 1/4"	10	PM090802E	PM090812E
8MM X 3/8"	10	PM090803E	PM090813E
10MM X 1/4"	10	PM091002E	PM091012E
10MM X 3/8"	10	PM091003E	PM091013E
10MM X 1/2"	10	PM091004E	PM091014E
12MM X 3/8"	10	PM091203E	PM091213E
12MM X 1/2"	10	PM091204E	PM091214E



Swivel Elbow Description (Centre Leg Threaded)	Bag Qty	BSPT Part #	BSP Part#
4MM X 1/8"	10	PM100401E	PM100411E
4MM X 1/4"	10	PM100402E	PM100412E
5MM X 1/8"	10	PM100501E	PM100511E
5MM X 1/4"	10	PM100502E	PM100512E
6MM X 1/8"	10	PM100601E	PM100611E
6MM X 1/4"	10	PM100602E	PM100612E
8MM X 1/8"	10	PM100801E	PM100811E
8MM X 1/4"	10	PM100802E	PM100812E
8MM X 3/8"	10	PM100803E	PM100813E
10MM X 1/4"	10	PM101002E	PM101012E
10MM X 3/8"	10	PM101003E	PM101013E
10MM X 1/2"	10	PM101004E	PM101014E
12MM X 3/8"	10	PM101203E	PM101213E
12MM X 1/2"	10	PM101204E	PM101214E



Swivel Male Run Tee Description (Tube x Tube x Thread)	Bag Qty	BSPT Part #	BSP Part#
4MMX4MMX1/8"	10	PM110401E	PM110411E
4MMX4MMX1/4"	10	PM110402E	PM110412E
5MMX5MMX1/8"	10	PM110501E	PM110511E
5MMX5MMX1/4"	10	PM110502E	PM110512E
6MMX6MMX1/8"	10	PM110601E	PM110611E
6MMX6MMX1/4"	10	PM110602E	PM110612E
8MMX8MMX1/8"	10	PM110801E	PM110811E
8MMX8MMX1/4"	10	PM110802E	PM110812E
8MMX8MMX3/8"	10	PM110803E	PM110813E
10MM X 10MM X 1/4"	10	PM111002E	PM111012E
10MM X 10MM X 3/8"	10	PM111003E	PM111013E
10MM X 10MM X 1/2"	10	PM111004E	PM111014E
12MM X 12MM X 3/8"	10	PM111203E	PM111213E
12MM X 12MM X 1/2"	10	PM111204E	PM111214E



Plug Description (Stem)	Bag Qty	Part No.
4MM	10	PM0804R
5MM	10	PM0805R
6MM	10	PM0806R
8MM	10	PM0808R
10MM	10	PM0810R
12MM	10	PM0812R
15MM	10	PM0815R
18MM	10	PM0818R
22MM	10	PM0822R



End Stop Description (Tube)	Bag Qty	Part No.
12MM	10	PM4612E
15MM	10	PM4615E
22MM	10	PM4622E



Two-Way Divider Description (Tube)	Bag Qty	Part No.
4MM	10	PM2304E
8MM	10	PM2308E
10MM	10	PM2310E
15MM	10	PM2315E



U-Bend Description (Tube)	Box Qty	Part No.
15MM	10	PMUB15E



Tube Cutter Description (Tube Cutter)	Box Qty	Part No.
Tube Cutter	1	TS NIP



Pipe Cutter Description (Pipe Cutter)	Box Qty	Part No.
Pipe Cutter	1	JG-TS
