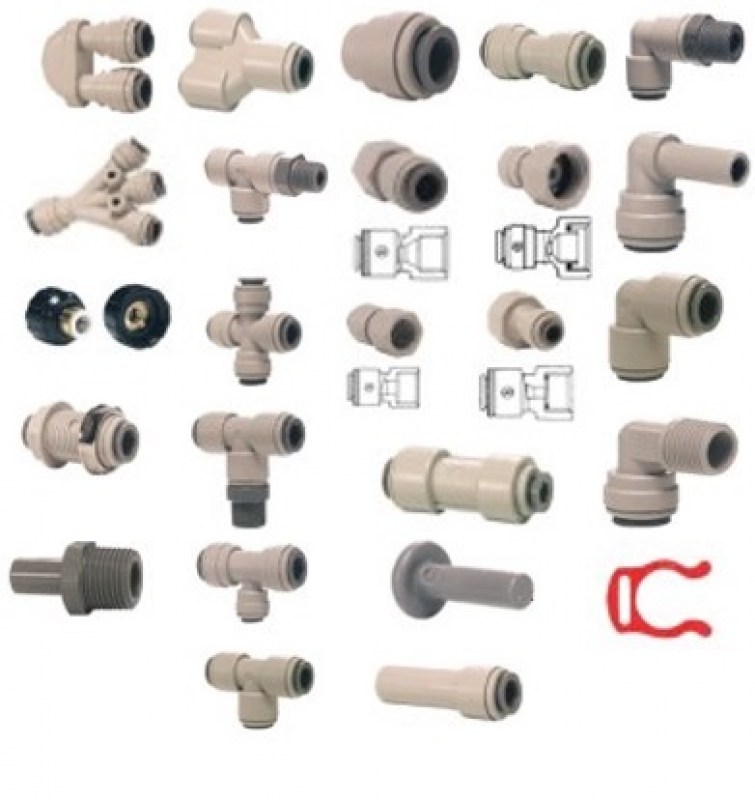

John Guest Acetal Imperial Fittings

John Guest Imperial Acetal fittings
JG ACETAL IMP FITTINGS



John Guest Imperial acetal with Buna N seals range of fittings.

Ask a question about this product
JG ACETAL IMP FITTINGS
EQUAL TEE1
bush-thumb
Description
Straight Adaptor Description (Tube x Thread)Bag QtyNPTF Part #BSPT Part#
1/4" X 1/8" 10 PI010821S PI010801S
1/4" X 1/8" - WHITE 10 CI010821W
1/4" X 1/4" 10 PI010822S PI010802S
1/4" X 1/4" - WHITE 10 CI010822W
1/4" X 3/8" 10 PI010823S
1/4" X 3/8" - WHITE 10 CI010823W
1/4" X 1/2" - WHITE 10 NC2495
5/16" X 1/8" 10 PM010821S PM010801S
5/16" X 1/4" 10 PM010822S PM010802S
5/16" X 3/8" 10 PM010823S PM010803S
3/8" X 1/8" 10 PI011221S
3/8" X 1/4" 10 PI011222S PI011202S
3/8" X 1/4" - WHITE 10 CI011222W
3/8" X 3/8" 10 PI011223S PI011203S
3/8" X 1/2" 10 PI011224S
1/2" X 3/8" 10 PI011623S PI011603S
1/2" X 1/2" 10 PI011624S PI011604S
5/8" X 3/4" 10 PI012026S



equal straight connnector

Equal Straight Connector Description (Tube x Tube)Bag QtyPart No.
1/4" 10 PI0408S
1/4" - WHITE 10 CI0408W
5/16" 10 PM0408S
3/8" 10 PI0412S
3/8" - WHITE 10 CI0412W
1/2" 10 PI0416S



Reducing Straight Connector

Reducing Straight Connector Description (Tube x Tube)Bag QtyPart No.
5/16" X 1/4" 10 PI201008S
3/8" X 1/4" 10 PI201208S
3/8" X 5/16" 10 PI201210S
1/2" X 5/16" 10 PI201610S
1/2" X 3/8" 10 PI201612S



equal elbow

Equal Elbow Description (Tube x Tube)Bag QtyPart No.
1/4" 10 PI0308S
1/4" - WHITE 10 CI0308W
5/16" 10 PM0308S
3/8" 10 PI0312S
3/8" - WHITE 10 CI0312W
1/2" 10 PI0316S



reducing elbow

Reducing Elbow Description (Tube x Tube)Bag QtyPart No.
5/16" X 1/4" 10 PI211008S
3/8" X 1/4" 10 PI211208S
3/8" X 5/16" 10 PI211210S
1/2" X 5/16" 10 PI211610S
1/2" X 3/8" 10 PI211612S



stem elbow

Stem Elbow Description (Stem x Tube)Bag QtyPart No.
1/4" X 1/4" 10 PI220808S
1/4" X 1/4" - WHITE 10 CI220808W
5/16" x 5/16" 10 PM220808S
3/8" X 1/4" 10 PI221208S
3/8" X 1/4" - WHITE 10 CI221208W
3/8" X 5/16" 10 PI221210S
3/8" X 3/8" 10 PI221212S
3/8" X 3/8'' - WHITE 10 CI221212W
1/2'' X 1/2'' 10 PI221616S



right elbow

Rigid Elbow NPTF Thread Description (Tube x Thread)Bag QtyPart No.
1/4" X 1/8" 10 PI480821S
1/4" X 1/8" - WHITE 10 CI480821W
1/4" X 1/4" 10 PI480822S
1/4" X 1/4" - WHITE 10 CI480822W
1/4" X 3/8" 10 PI480823S
1/4" X 3/8" - WHITE 10 CI480823W
5/16" X 1/4" 10 PI481022S
5/16" X 3/8" 10 PI481023S
3/8" X 1/4" 10 PI481222S
3/8" X 1/4" - WHITE 10 CI481222W
3/8" X 3/8" 10 PI481223S
5/8" X 1/2" 10 PI482024S



equal tee

Equal Tee Description (Tube x Tube x Tube)Bag QtyPart No.
1/4" 10 PI0208S
1/4" - WHITE 10 CI0208W
5/16" 10 PM0208S
3/8" 10 PI0212S
3/8" - WHITE 10 CI0212W
1/2" 10 PI0216S



reduce tee

Equal Tee Description (Tube x Tube x Branch)Bag QtyPart No.
3/8" X 3/8" X 1/4" 10 PI301208S
1/2" X 1/2" X 3/8" 10 PI301612S



stem adaptor

Stem Adaptor Description (Stem x Thread)Bag QtyNPTF Part #BSPT Part#
1/4" X 1/8" 10 PI050821S PI050801S
1/4" X 1/8" - WHITE 10 CI050821W
1/4" X 1/4" 10 PI050822S PI050802S
1/4" X 1/4" - WHITE 10 CI050822W
5/16" X 1/8" 10 PM050821S PM050801S
5/16" X 1/4" 10 PM050822S PM050802S
5/16" X 3/8" 10 PM050823S PM050803S
3/8" X 1/4" 10 PI051222S PI051202S
3/8" X 1/4" - WHITE 10 CI051222W
3/8" X 3/8" 10 PI051223S PI051203S
3/8" X 3/8" - WHITE 10 CI051223W
1/2" X 3/8" 10 PI051623S PI051603S
1/2" X 1/2" 10 PI051624S PI051604S



stem reducer

Stem Reducer Description (Stem x Tube)Bag QtyPart No.
5/16" X 1/4" 10 PI061008S
3/8" X 1/4" 10 PI061208S
3/8" X 1/4" - WHITE 10 CI061208W
3/8" X 5/16" 10 PI061210S
1/2" X 5/16" 10 PI061610S
1/2" X X 3/8" 10 PI061612S

bulkhead connector

Bulkhead Connector Description (Tube x Tube)Bag QtyPart No.
1/4" 10 PI1208S
1/4" - WHITE 10 CI1208W
5/16" 10 PM1208S
3/8" 10 PI1212S
1/2" 10 PI1216S



Reducing Bulkhead Connector Description (Tube x Tube)Bag QtyPart No.
3/8" X 1/4" 10 PI121208S



faucet connector uns

Faucet Connector UNS Thread Description (Tube x Thread)Box QtyPart No.
1/4" X 7/16" 10 CI3208U7S
3/8" X 7/16" 10 CI3212U7S
3/8" X 7/16" - WHITE 10 CI3212U7FW



female-adaptor-nptf

Female Adaptor NPTF Thread Description (Tube x Thread)Bag QtyPart No.
1/4" X 1/4" 10 PI450822S
3/8" X 1/4" 10 PI451222S



 female-tap-adaptor-bsp

Female Tap Adaptor BSP Thread Description (Tube x Thread)Bag QtyPart No.
1/4" X 1/2" 10 CI320814S
1/4" X 3/4" 10 CI320816S
3/8" X 1/2" 10 CI321214S
3/8" X 3/4" 10 CI321216S



female tap adaptor bsp

Female Tap Adaptor BSP Thread Description (Tube x Thread)Bag QtyPart No.
1/4" X 3/4" 10 CI320816FS
5/16" X 1/2" 10 PI451014FS
5/16" X 5/8" 10 PI451015FS
3/8" X 3/8" 10 PI451213S
3/8" X 1/2" 10 PI451214FS
3/8" X 5/8" 10 PI451215FS
3/8" X 3/4" 10 CI311216FS
1/2" X 3/8" 10 PI451613S
1/2" X 5/8" 10 PI451615FS



female tap adaptor bsp

Female Tap Adaptor BSP Thread Cone End Description (Tube x Thread)Bag QtyPart No.
5/16" X 1/2" 10 PI451014CS
5/16" X 5/8" 10 PI451015CS
3/8" X 1/2" 10 PI451214CS
3/8" X 5/8" 10 PI451215CS
1/2" X 1/2" 10 PI241614CS
1/2" X 5/8" 10 PI451615CS
1/2" X 3/4" 10 PI451616CS



female nut assembly bsp

Female Nut Assembly BSP Thread Description (Tube x Thread)Bag QtyPart No.
1/4" X 3/4" 10 NC2145
3/8" X 3/4" 10 NC2249



swivel elbow

Swivel Elbow Description (Tube x Thread)Bag QtyNPTF Part #BSPT Part#
1/4" X 1/8" 10 PI090821S PI090801S
1/4" X 1/4" 10 PI090822S PI090802S
5/16" X 1/8" 10 PM090821S PM090801S
5/16" X 1/4" 10 PM090822S PM090802S
5/16" X 3/8" 10 PM090823S PM090803S
3/8" X 1/4" 10 PI091222S PI091202S
3/8" X 3/8" 10 PI091223S PI091203S
1/2" X 3/8" 10 PI091623S PI091603S
1/2" X 1/2" 10 PI091624S PI091604S



collet locaking tool

Collet Locking Tool Description (Locking Tool)Bag QtyPart No.
LOCKING TOOL 3/16" TO 1/2" 1 ICLT/2



Swivel Branch Tee

Swivel Branch Tee Description (Tube x Tube x Thread)Bag QtyNPTF Part #BSPT Part#
1/4" X 1/4" X 1/8" 10 PI100821S PI100801S
1/4" X 1/4" X 1/4" 10 PI100822S PI100802S
5/16" X 5/16" X 1/8" 10 PM100821S PM100801S
5/16" X 5/16" X 1/4" 10 PM100822S PM100822S
5/16" X 5/16" X 3/8" 10 PM100823S PM100823S
3/8" X 3/8" X 1/4" 10 PI101222S PI101202S
3/8" X 3/8" X 3/8" 10 PI101223S PI101203S
1/2" X 1/2" X 3/8" 10 PI101623S PI101623S
1/2" X 1/2" X 1/2" 10 PI101624S PI101624S



Swivel Male Run Tee

Swivel Male Run Tee Description (Tube x Tube x Thread)Bag QtyNPTF Part #BSPT Part#
1/4" X 1/4" X 1/8" 10 PI110821S PI110801S
1/4" X 1/4" X 1/4" 10 PI110822S PI110802S
5/16" X 5/16" X 1/8" 10 PM110821S PM110801S
5/16" X 5/16" X 1/4" 10 PM110822S PM110802S
5/16" X 5/16" X 3/8" 10 PM110823S PM110803S
3/8" X 3/8" X 1/4" 10 PI111222S PI111202S
3/8" X 3/8" X 3/8" 10 PI111223S PI111203S
1/2" X 1/2" X 3/8" 10 PI111623S PI111603S
1/2" X 1/2" X 1/2" 10 PI111624S PI111604S



plug

Plug Description (Stem)Bag QtyPart No.
1/4" 10 PI0808S
5/16" 10 PM0808S
3/8" 10 PI0812S
1/2" 10 PI0816S



end stop

End Stop Description (Tube)Bag QtyPart No.
1/4" 10 PI4608S
5/16" 10 PI4612S



Bush

End Stop Description (Tube)Box QtyPart No.
3/8" 10 PI4712S



Bush

Two-Way Divider Description (Tube)Box QtyPart No.
1/4" 10 PI2308S
5/16" 10 PM2308S
3/8 10 PI2312S
1/2" 10 PI2316S



Bush

Three-Way Divider Description (Tube Inlet x Tube Outlets)Box QtyPart No.
3/8" X 3/8" 10 PI491212S-R
1/2" X 3/8" 10 PI491612S
1/2" X 1/2" 10 PI491616S



Bush

U-Bend Description (Tube)Box QtyPart No.
3/8" 10 PIUB12S
1/2" 10 PIUB16S



Bush

Locking Clip Description (Tube)Box QtyPart No.
1/4" 100 PIC1808R
5/16" 100 PMC1808R
3/8" 100 PIC1812R
1/2" 100 PIC1816R



Bush

Tube Cutter Description (Tube Cutter)Box QtyPart No.
Tube Cutter 1 TS NIP



Bush

Pipe Cutter Description (Pipe Cutter)Box QtyPart No.
Pipe Cutter 1 JG-TS
