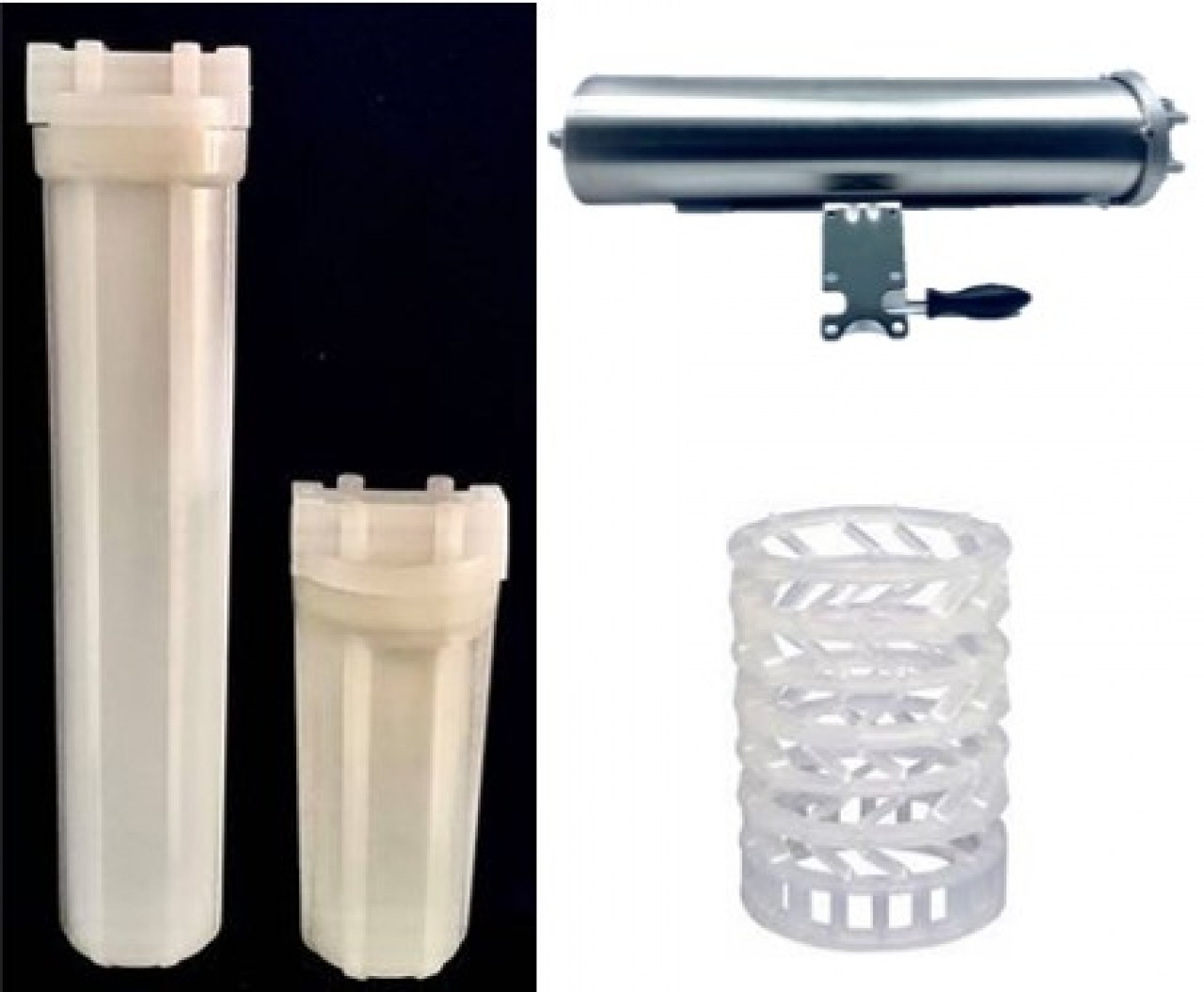

Miscellaneous Filter Housings
Miscellaneous Cartridge filter housings
Miscellaneous Cartridge filter housings.
Description

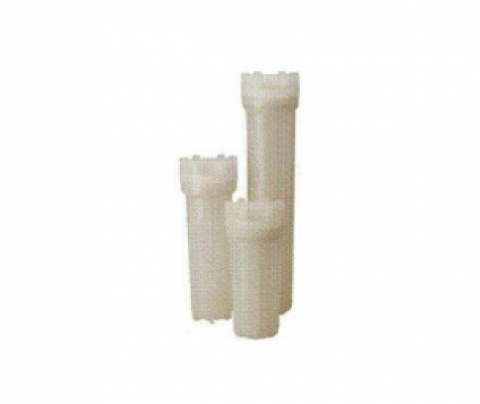

Pentek All Natural Filter Housings:
Pure polypropylene construction with no fillers, colourants, plasticiszers or lubricants.
Ultra smoothe contact surfaces to prevent bacterial adhesion adhesion and build up.
Resists DI water and other inorganic solutions.
Resists stress cracking
Viton O-rings
|
Description |
Box Qty | Part No. |
|---|---|---|
| 10" natural housing with 3/4" ports. Accepts DOE configuration cartridges. 2 x 1/4" gauge ports in head. 1/4" drain port in sump. | 1 | HSNG-750-10PP-WP |
| 12" natural housing with 3/4" ports. Accepts 10" SOE 222 seal / Fin end cap configuration cartridges. | 1 | HSNG-750-12PP-222-WO/P |
| 12" natural housing with 3/4" ports. Accepts 10" SOE 222 seal / Fin end cap 222 seal configuration cartridges. 2 x 1/4" gauge ports in head. 1/4" drain port in sump | 1 | HSNG-750-12PP-222-WP |
| 12" white housing with 3/4" ports. Accepts 10" SOE 222 seal / Fin end cap 222 seal configuration cartridges. 2 x 1/4" gauge ports in head. 1/4" drain port in sump | 1 | HSNG-750-12WPP-222-W/P |
| 20" natural housing with 3/4" ports. Accepts 20" DOE configuration cartridges. | 1 | HSNG-750-20PP-WO/P |
| 20" natural housing with 3/4" ports. Accepts 20" DOE configuration cartridges. 2 x 1/4" gauge ports in head. 1/4" drain port in sump. | 1 | HSNG-750-20PP-WP |
| 20" natural housing with 3/4" ports. Accepts 20" SOE 222 seal / Flat end cap configuration cartridges. | 1 | HSNG-750-20PP-222-WO/P |
| 20" natural housing with 3/4" ports. Accepts 20" SOE 222 seal / Flat end cap configuration cartridges. 2 x 1/4" gauge ports in head. 1/4" drain port in sump | 1 | HSNG-750-20PP-222-WP |
| All natural sump extension springs for 12" housings if using 10" Flat end cap configuration | 1 | 157209 |
20" x 4 1/2" Stainless Steel Cartridge Filter Housings:
Spring lasded knife edge seal
Commercial and industrial applications
Ring nut closure for quick cartridge change outs
Supplied with mounting bracket kit and housing wrench
Accepts double open ended cartridge configurations
Maximum working pressure 300 PSI
Maximum temperature 93 Degrees C
|
Description |
Box Qty | Part No. |
|---|---|---|
| 20" x 4 1/2" 316 stainless steel cartridge filter housing; 1" BSP ports; EPDM gasket & mounting bracket | 1 | HSNG-1000-BW20SS-316 |
