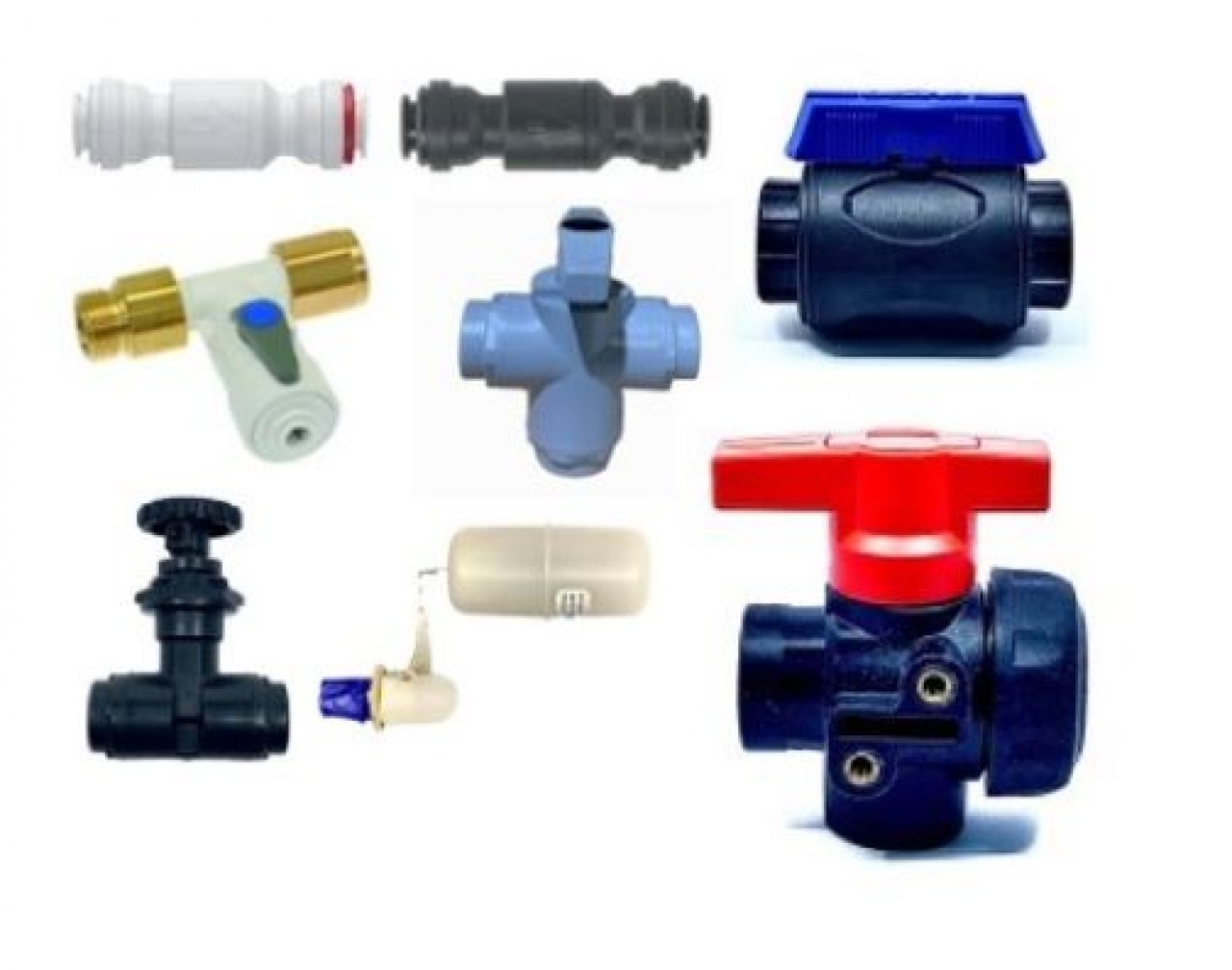

Valves - Various
1/4" Compression. Horizontal
1/4" Compression. Vertical
All plastic. 1/4" stem inlet. Horizontal
All plastic. 1/4" stem inlet. Vertical
Description
| SMC Miniature Plastic Needle Valves - Panel Mount | Box Qty | Part # |
|---|---|---|
| PVC/Grey 14'' NPT female x 1/4'' NPT female. Teflon® seal | 1 | NV-1/4 |
| PVC/Grey 1/4'' push to connect x 1/4'' push to connect. Teflon® seal | 1 | NV-1/4JG |
| Polypropylene/White 1/4'' NPT female x 1/4'' NPT female. Teflon® seal | 1 | NV-1/4-P/V |
| PVDF/Black 1/4'' NPT female x 1/4'' NPT female. Teflon® seal | 1 | NV-1/4-KV |
| SMC Miniature Plastic 3 Way Valves - Bottom Feed | Box Qty | Part # |
|---|---|---|
| PVC/Grey 14'' NPT female ports. Buna Seal | 1 | BV-1/4-3 |
| Polypropylene/White 1/4'' NPT female ports. Teflon® seal | 1 | BV-1/4-3-P/V |
| PVDF (kynar) Black 1/4'' NPT female ports. Teflon® seal | 1 | BV-1/4-3-K/V |
| John Guest Acetal Check Valves - Single Imperial | Box Qty | Part # |
|---|---|---|
| 1/4'' speedfit x 1/4'' speedfit | 1 | 1/4SCV |
| 5/16'' speedfit x 5/16'' speedfit | 1 | 5/16SCV |
| 3/8'' speedfit x 3/8'' speedfit | 1 | 3/8SCV |
| John Guest Acetal Check Valves - Single Metric | Box Qty | Part # |
|---|---|---|
| 6MM Speedlift x 6MM speedfit | 1 | 6SCV |
| 10MM Speedlift x 10MM speedfit | 1 | 10SCV |
| 12MM Speedlift x 12MM speedfit | 1 | 12SCV |
| John Guest Acetal Check Valves - Dual Metric | Box Qty | Part # |
|---|---|---|
| 6MM Speedlift x 6MM speedfit | 1 | 15DCV |
| Jaco Kynar Nipple Check Valves - S/Steel Ball & Spring, Viton Seal, 1 to 2.5 PSI Cracking Pressure | Box Qty | Part # |
|---|---|---|
| 1/8'' Male NPT x 1/8'' Male NPT | 1 | CV-2-K |
| 1/4'' Male NPT x 1/4'' Male NPT | 1 | CV-4-K |
| 3/8'' Male NPT x 3/8'' Male NPT | 1 | CV-6-K |
| 1/2'' Male NPT x 1/2'' Male NPT | 1 | CV-8-K |
| John Guest Acetal Angle Stop Valves - BSP Threads. Single Check Valve Incorporated. 1/4'' Turn Action | Box Qty | Part # |
|---|---|---|
| 3/8'' Male x 3/8'' Female Connection. 3/8'' Tube OD Branch Outlet | 30 | ASV7 |
| 1/2'' Male x 1/2'' Female Connection. 3/8'' Tube OD Branch Outlet | 30 | ASV8 |
| 3/8'' Male x 3/8'' Female Connection. 1/4'' Tube OD Branch Outlet | 30 | ASV9 |
| 1/2'' Male x 1/2'' Female Connection. 1/4'' Tube OD Branch Outlet | 30 | ASV10 |
| John Guest Acetal Angle Stop Valves - Metric Tube Feed. Single Check Valve Incorporated. 1/4'' Turn Action | Box Qty | Part # |
|---|---|---|
| 6MM Speedlift x 6MM speedfit | 30 | ASV3 |
| 10MM Speedlift x 10MM speedfit | 30 | ASV4 |
| Float valves | Box Qty | Part No. |
|---|---|---|
| 1/4" Compression. Horizontal | 1 | FVH-4 |
| 1/4" Compression. Vertical | 1 | FVH-4 |
| All plastic. 1/4" stem inlet. Horizontal | 1 | FVH-4 |
| All plastic. 1/4" stem inlet. Vertical | 1 | FVH-4 |
| Glass Filled Polypropylene Ball valves. EPDM Seals | Box Qty | Part No. |
|---|---|---|
| 1/2" NPT Female x 1/2" NPT female straight. | 1 | BV-8-8 |
| 3/4" NPT Female x 3/4" NPT female straight. | 1 | BV-12-12 |
| 1" NPT Female x 1" NPT female straight. | 1 | BV-16-16 |
| 1/2" NPT Female x 1/2" NPT female x 1/2" NPT female 3 way. | 1 | BV3-8-8 |
| 3/4" NPT Female x 3/4" NPT female x 3/4" NPT female 3 way. | 1 | BV3-12-12 |
| 1" NPT Female x 1" NPT female x 1" NPT female 3 way. | 1 | BV3-16-16 |
| Ball valves. | Box Qty | Part No. |
|---|---|---|
| Full Flow 1/2" NPT Female x 1/2" NPT female straight. | 1 | BV-8-8G |
| 3/4" NPT Female x 3/4" NPT female straight. | 1 | BV-12-12G |
| 1" NPT Female x 1" NPT female straight. | 1 | BV-16-16G |
