Falcon 316L Stainless Steel Flexible Connectors

Falcon 316 Stainless Steel Flexible Connectors
FALCON_InPixio4

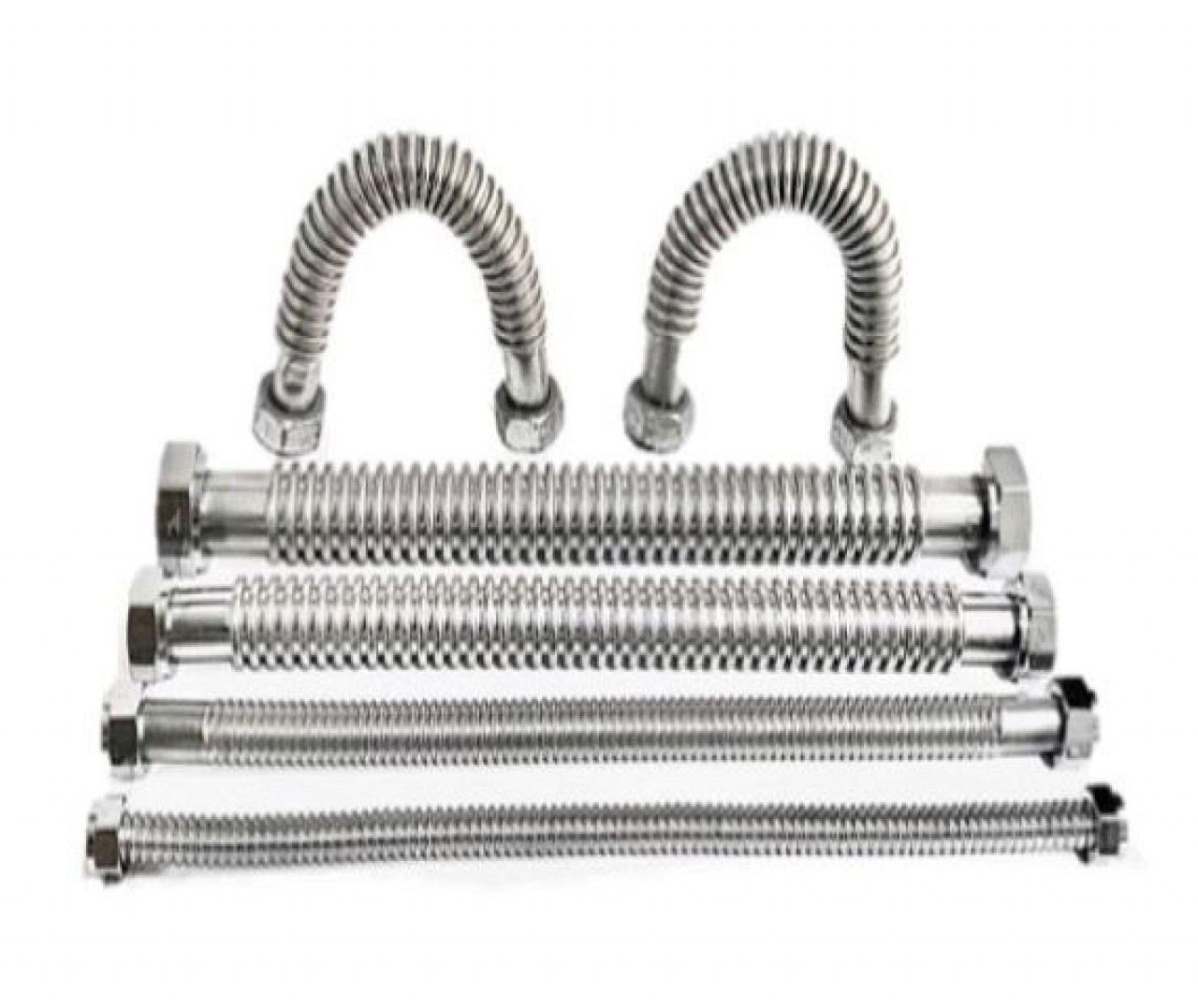

Falcon 316 Stainless Steel Flexible Connectors

316L stainless steel corrugated stainless steel construction.

Saves time and money with ease of installation.

More flexible than braided type connectors.

Will not crimp or kink.

No rubber or plastic internals to reduce flow.

No deformity in curvature and will hold bend.

Will not discolour, corrode or rust.

Lifetime warranty against manufacturing defects for the lifetime of the installation.

Maximum working pressure 3MPa / 435 PSI.

Temperature rated up to 95 degrees Celcius.

Suitable for residential and commercial patable water applications.

Watermark approved.



FALCON_InPixio4
connector1
Description



1/2" BSP Female x 1/2" BSP FemaleBox QtyPart No.
300 mm length ( 12" ) 100 S-02 X 12"
450 mm length ( 18" ) 100 S-02 X 18"
600 mm length ( 24" ) 100 S-02 X 24"
900 mm length ( 36" ) 100 S-02 X 36"
1200 mm length ( 48" ) 50 S-02 X 48"

3/4" BSP Female x 3/4" BSP FemaleBox QtyPart No.
150mmlength(6") 50 FF- 6"
300 mm length ( 12" ) 100 FF- 12"
450 mm length ( 18" ) 100 FF- 18"
600 mm length ( 24" ) 100 FF- 24"
900 mm length ( 36" ) 50 FF- 36"
1200 mm length ( 48" ) 50 FF- 48"

1" BSP Female x 1" BSP FemaleBox QtyPart No.
300 mm length ( 12" ) 50 SWC-1 X 12"
450 mm length ( 18" ) 50 SWC-1 X 18"
600 mm length ( 24" ) 50 SWC-1 X 24"
900 mm length ( 36" ) 50 SWC-1 X 36"
1200 mm length ( 48" ) 50 SWC-1 X 48"
1500 mm length ( 60" ) 50 SWC-1 X 60"

1 1/4" BSP Female x 1 1/4" BSP FemaleBox QtyPart No.
450 mm length ( 18" ) 25 SWC-114 X 18"
600 mm length ( 24" ) 25 SWC-114 X 24"
900 mm length ( 36" ) 25 SWC-114 X 36"
1200 mm length ( 48" ) 25 SWC-114 X 48"
1500 mm length ( 60" ) 25 SWC-114 X 60"

1 1/2" BSP Female x 1 1/2" BSP FemaleBox QtyPart No.
450 mm length ( 18" ) 25 SWC-112 X 18"
600 mm length ( 24" ) 25 SWC-112 X 24"
900 mm length ( 36" ) 25 SWC-112 X 36"
1200 mm length ( 48" ) 25 SWC-112 X 48"
1500 mm length ( 60" ) 25 SWC-112 X 60"

2" BSP Female x 2" BSP FemaleBox QtyPart No.
450 mm length ( 18" ) 25 SWC-2 X 18"
600 mm length ( 24" ) 25 SWC-2 X 24"
900 mm length ( 36" ) 25 SWC-2 X 36"
1200 mm length ( 48") 25 SWC-2 X 48"
1500 mm length ( 60") 25 SWC-2 X 60"
